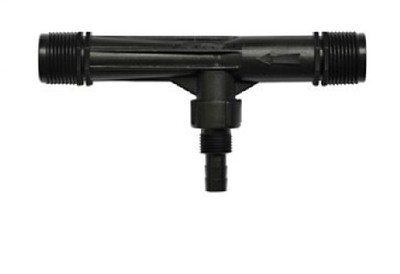

venturi nozzle/injector

  • Description
  • Make an Inquiry

OD of water outlet and inlet

In

1/4

1/2”

3/4”

1”

1.5”

2”

OD of air inlet

In

1/8

1/4

1/4

1/2

1/2

1.25

Water flow rate

t/h

0.05-0.25

0.1-1

1-3

3-10

10-25

25-50

INput pressure

kg/cm2

1.0-2.0

2.5-4.0

2.5-5.0

2.5-5.0

2.5-6.0

3.0-7.0

Air suction capactity

Nm3/hr

1-3

4-7

7.5-10

11-15

22-30

37-49

Length

mm

50

95

152

225

275

295

  1. thread sizes: 1/2", 3/4", 1", 1-1/2", 2",available.
  2. Inlet & outlet: Male thread (NPT & BSP ).
  3. Made of good quality engineering plastic with good UV resistance.
  4. Excellent chemical resistance.materilas:PVC PVDF
  5. Economical and low cost option for fertigation

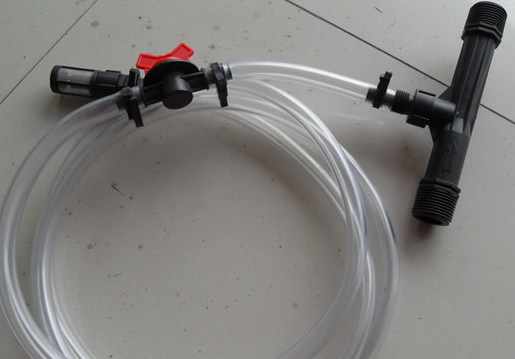

  6. all spare parts we could match for you,eg hose, valve, fiter
