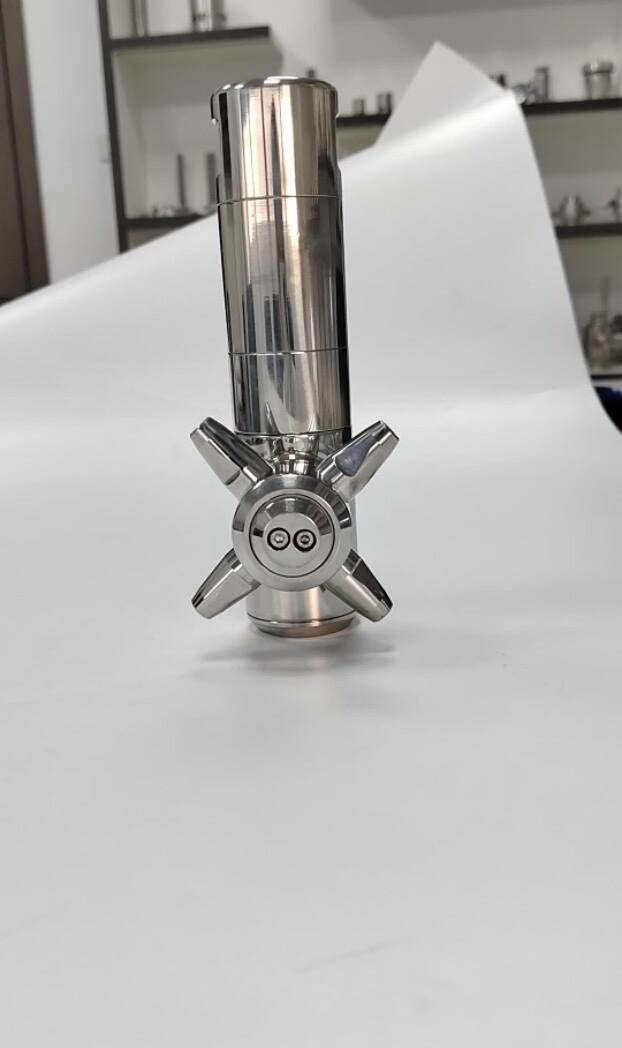

low pressure 360 degree rotating tank cleaning nozzle is driven by cleaning fluid that activates a turbine, which drives an internal reduction mechanism. The gear mechanism operates according to a set trajectory, achieving both rotation and revolution, resulting in 360-degree no-dead-angle cleaning.

① Optimized structural design capable of generating stronger impact water flow;

② Excellent sealing design with a leakage rate of only 3%, offering a more economical cleaning solution;

③ Independent gearbox design to prevent internal gear damage, allowing operation in harsh water conditions;

④ The spray jet is columnar, producing high impact force;

⑤ Precision gear pairing enables the nozzle to follow a set trajectory, ensuring thorough cleaning;

⑥ Unique steady flow design concentrates the spray jet for greater impact and more effective cleaning.

Product information

Product Information

G3/4" Female Thread

| Maximum Tank Diameter | 30 ft (9.1 m) | Working Pressure | 3.4–15 bar |

| Flow Rate | 2.5–6 m³/h | Max Temperature | 200°F (93°C) |

| Working Principle | Gear Reduction Drive | Material | 316L, PTFE |

| Minimum Opening Size | Φ100 mm (Φ70) | Inlet Connection | 3/4" NPT or BSPT (F) |

| Weight | 2.6 kg | Cleaning Cycle | 5–35 min |
