XWT fire protection fine atomizing nozzle (middle and high pressure type)

  • Description
  • Make an Inquiry

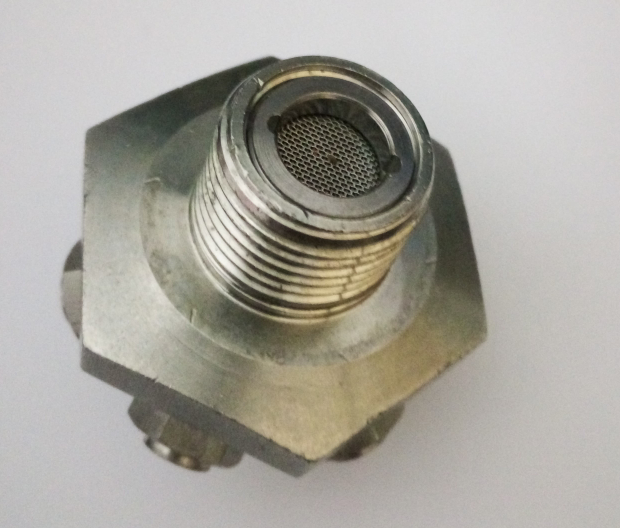

XWT fine atomizing nozzle (middle and high pressure type)is consist of body, atomizing disco, spray tip ,filter and so on parts,
water come into spray tip and then spray out under pressure,
thread size: DN15.NPT1/2“, DN20,NPT3/4”
working presure :0.8~2.5MPa (8~25bar)
flow rate factor:K=3.5、4.5

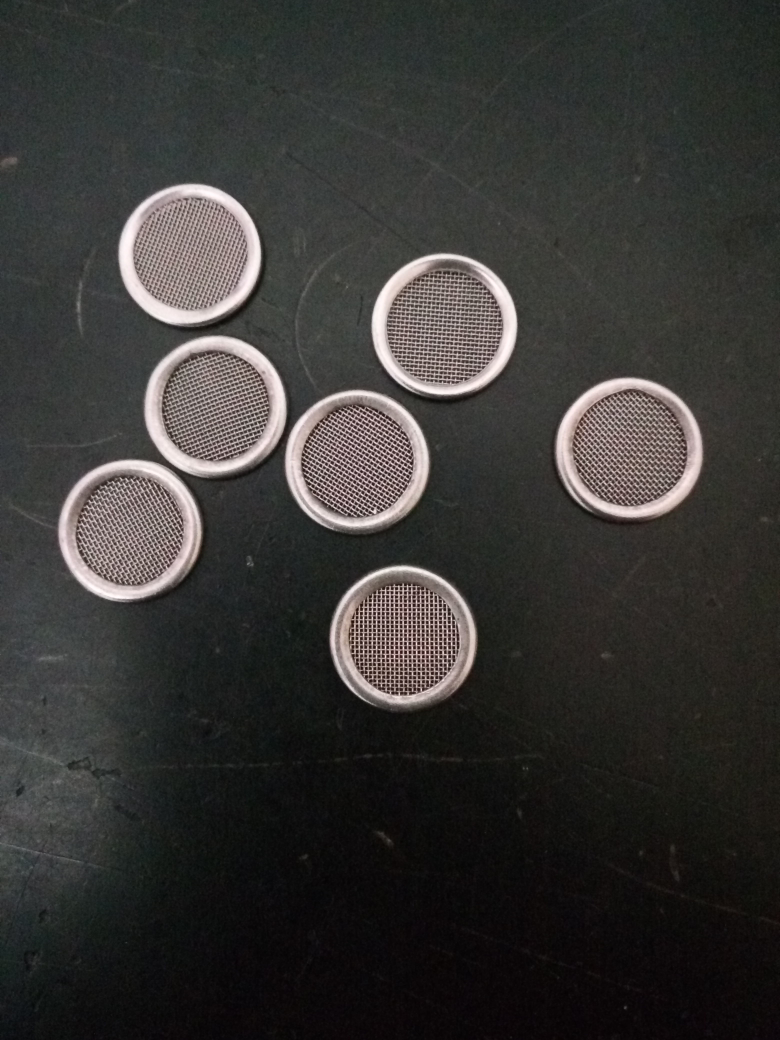

filter material:SS, net quality:80、60、50、36
this nozzle belong to I.II misting ,the flow rate change as per pressure change

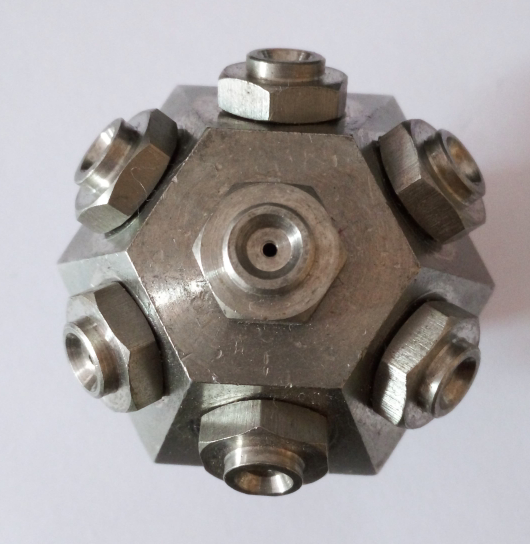

there are 7 spray tip on nozzle, the spray coverage is more wide than other nozzle, and flow rate is less compare to
whiljet nozzle which is suit for large space atomizing
fine atomizing nozzle (high pressure type)
material: brass ALoy+nickel plate
working presure :0.8~2.5MPa (8~25bar)
flow rate factor:K=0.8、1.0。
filter material:SS, net quality:80、60、50、36
this nozzle belong to I.II misting ,the flow rate change as per pressure change
high pressure fine atomizing nozzle can Extinguish B type fire( 0# diesel oil,90# gas oil,
Bilateral double power cable fire , library archives fire
