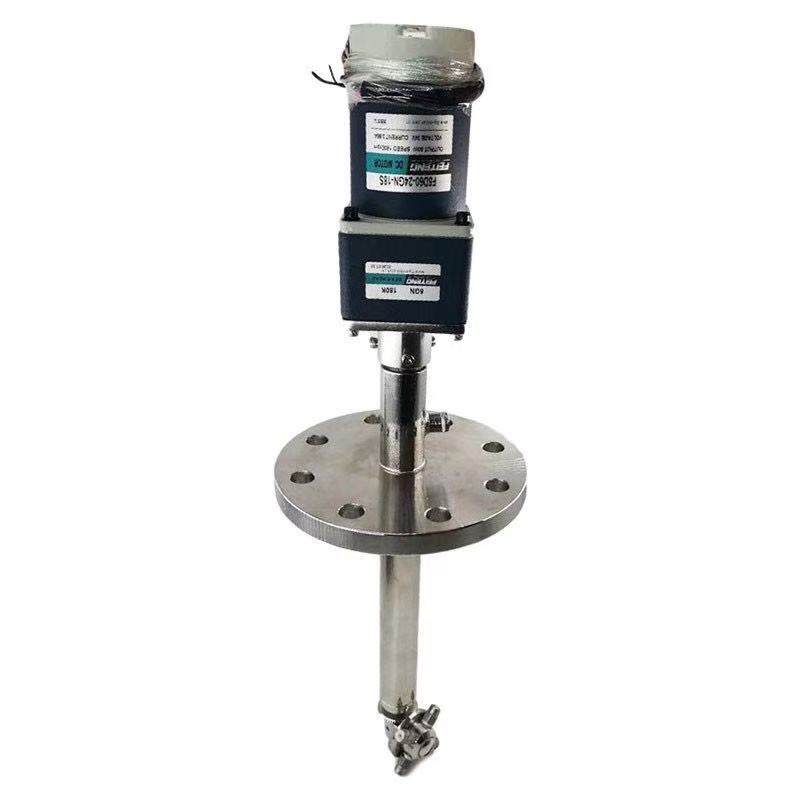

MD motor-driven small and medium-sized three-dimensional tank cleaning machine,
is suitable for small tanks,
Such as fuel ethanol, beer, chemical industry, industrial fermentation industry
and occasions requiring high-impact cleaning.
The optimized structure design makes the water jet with greater impact force.
Excellent sealing design, the leakage of water is only 3%, thus saving clear liquid.
Driven by an external motor, the pressure loss of the water flow is reduced,
and the impact force of the water flow is higher. This series of tank washer is
driven to rotate by an external motor,
Drive the tank washing device to rotate. The gear mechanism runs according to
the set trajectory to realize revolution and rotation, so as to realize 360°
no dead angle cleaning.
Application working
Performance characteristics
Material: 316L stainless steel, 304 stainless steel
Lubricant: Self-lubricating by cleaning fluid
Working pressure: 2-500 bar
Recommended working pressure: 100-300 bar
Maximum pressure: 500 bar maximum
Working temperature: 80°C max
Ambient temperature: 140°C
Cleaning angle: 360°
Installation method: Can be installed in any direction
Maximum cleaning diameter: 1-2m
The length of spray rod can be selected: 500, 1000MM
Motor power: 60W
Motor IP: IP65
Speed: 1400 RPM
Voltage DC24V
Connection method: thread or flange
Water inlet interface: G3/8-FR (other interfaces can be customized)
Cleaning cycle: 3-5 minutes
Weight: 7.5-12kg
